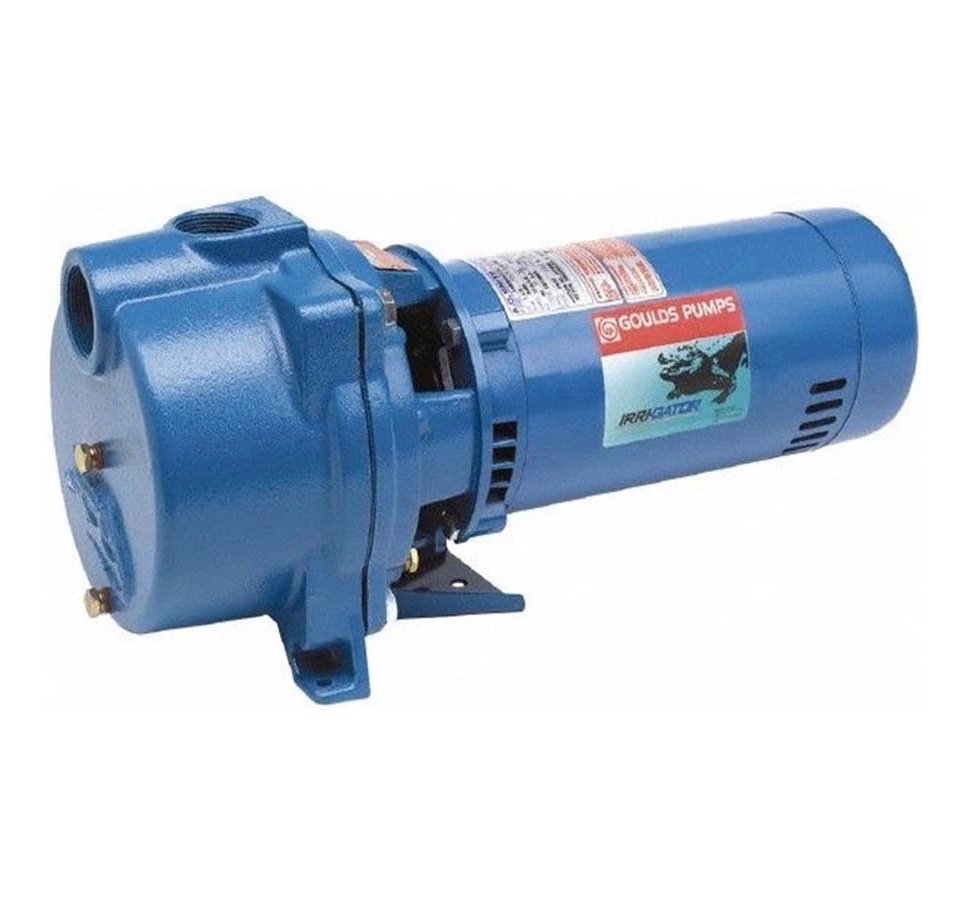

Self Priming Booster pump 1 1/2HP 115-230V
- Pipe connections: 1 1/2 NPT suction 1 1/2 NPT discharge
- Capacities: to 110 GPM at 5 foot suction lift.
- Heads: to 128 feet.
- Re-prime capabilities: to 25 feet suction lift.
- Maximum working pressure: 125 PSIG.
- Maximum water temperature: 140_ F (60_ C).
- Rotation: clockwise when viewed from motor end
- NEMA standard open drip proof
- 60 Hz, 3500 RPM.
- Stainless steel shaft.
- Single phase:1HP, 115/230 V; 2 and 3 HP, 230 V only. Built-in overload with automatic reset.
- Three phase: 230/460 V. Overload protection must be provided in starter unit. Starter and heaters (3) must be ordered separately.
- Optional TEFC motors are available.
